                          Custom Double Layer Quartz Glass Reactor for Laboratory Semiconductor Clients

Introduction

High-purity quartz glass is irreplaceable in precision chemical, pharmaceutical, and semiconductor labs, thanks to its zero metal contamination, outstanding thermal shock resistance, and optical clarity. This case shares our full cooperation process with a European lab equipment distributor, who ordered customized double-layer jacketed quartz reactors for their university and industrial lab end-users. The whole communication, customization, production, and delivery process demonstrates our core advantages: high-precision machining, ultra-high purity quartz raw material, and flexible OEM design.

Client Initial Inquiry & Core Requirements

The client reached out via our independent site in March 2026, with clear pain points:

1. Ordinary borosilicate glass reactors failed their high-temperature ultrapure reagent test, releasing trace heavy metal impurities that ruined lab sample data.

2. Standard single-size reactors could not match their existing clamping fixtures and circulating cooling systems.

3. They needed detachable split reactor bodies with quick-release clamps for fast disassembly, cleaning, and sterile replacement of inner quartz chambers.

During video consultation, we showed our raw JGS2 high-purity quartz blanks, precision CNC cutting equipment, and finished prototype samples (as shown in attached product images). We confirmed customized parameters: double-layer jacket structure, side fluid circulation ports, top flat flange sealed with fluororubber gaskets, and matching quick clamps with red hand levers for uniform pressure sealing.

Customized Manufacturing & Quality Control

Two core strengths supported this project:

1. High Precision Machining

All flange surfaces are polished to optical flatness with tight parallelism tolerance. The double-layer interlayer wall maintains uniform thickness to ensure stable cooling/heating circulation without local temperature deviation. Our mechanical fixtures lock the upper cover evenly to eliminate leakage under vacuum or positive pressure working conditions.

2. Ultra-High Purity Quartz Material

We adopt fully fused high-purity quartz without any binder. No ion leaching occurs even under strong acid, alkali, and high-temperature environments. All sealing accessories (gaskets, screw caps) are PTFE corrosion-resistant, fully matching the clean lab standards the client required.

We sent pre-production photos and short videos at every production stage: raw blank cutting, high-temperature welding, surface polishing, clamp assembly, and air tightness pressure testing. The client signed off on samples within 3 working days without revision requests.

Final Delivery & Client Feedback

A bulk order of 50 sets of double-layer quartz reactors was finished within 15 working days, packed with shockproof foam and export wooden cases. After receiving goods, the client shared positive feedback:

• The reactors perfectly fit their original lab frame fixtures; quick clamps greatly cut equipment disassembly time by 60%.

• Zero impurity precipitation in ultrapure chemical tests, meeting semiconductor wet lab strict standards.

• Transparent quartz body allows real-time visual observation of internal reaction status.

They placed a repeat order 1 month later, plus an OEM request to print their brand logo on reactor flanges.

Conclusion

This cooperation case proves our double-layer quartz glass reactor solves critical pain points for high-end lab users: contamination risks, poor sealing, and low assembly efficiency. For global distributors, research institutes, and chemical manufacturers, we provide one-stop customized quartz reaction vessel solutions with flexible size adjustment, full-process quality tracking, and reliable export support. If you have special reaction vessel demands, contact our engineering team for free technical drawing consultation and sample testing.

Matching Image Description for Your Independent Site

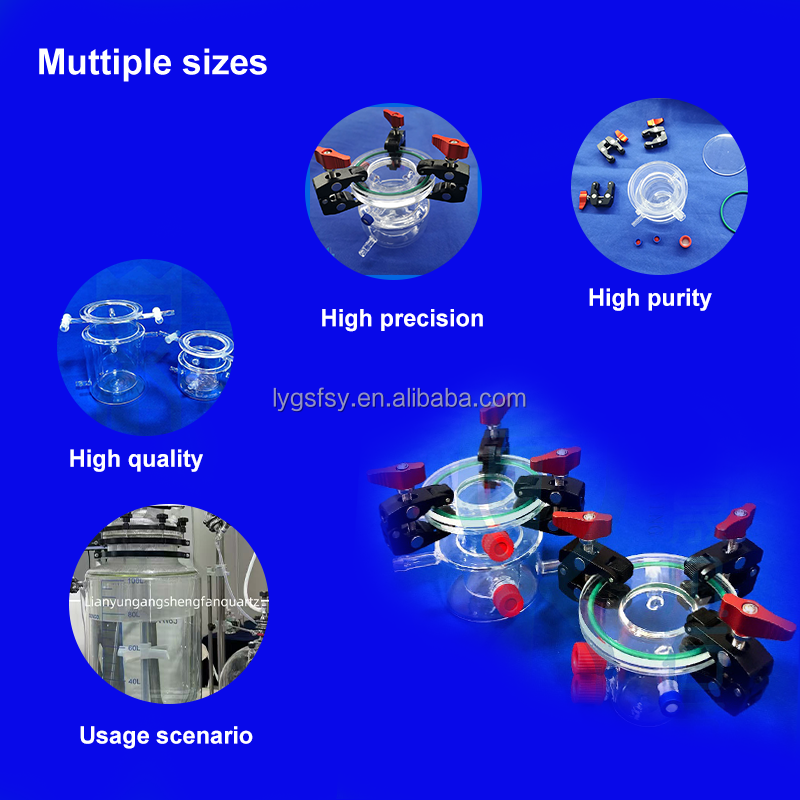

1. Main banner image: Assembled finished double-layer quartz reactors with quick-release clamps (the full blue background product picture you provided)

2. Detail sub-image 1: Circular close-up of assembled reactor – label: High Precision Flat Flange Sealing Structure

3. Detail sub-image 2: Disassembled spare parts (clamps, quartz cover, PTFE gasket, ports) – label: High Purity Detachable Quartz Components
